MB86~150

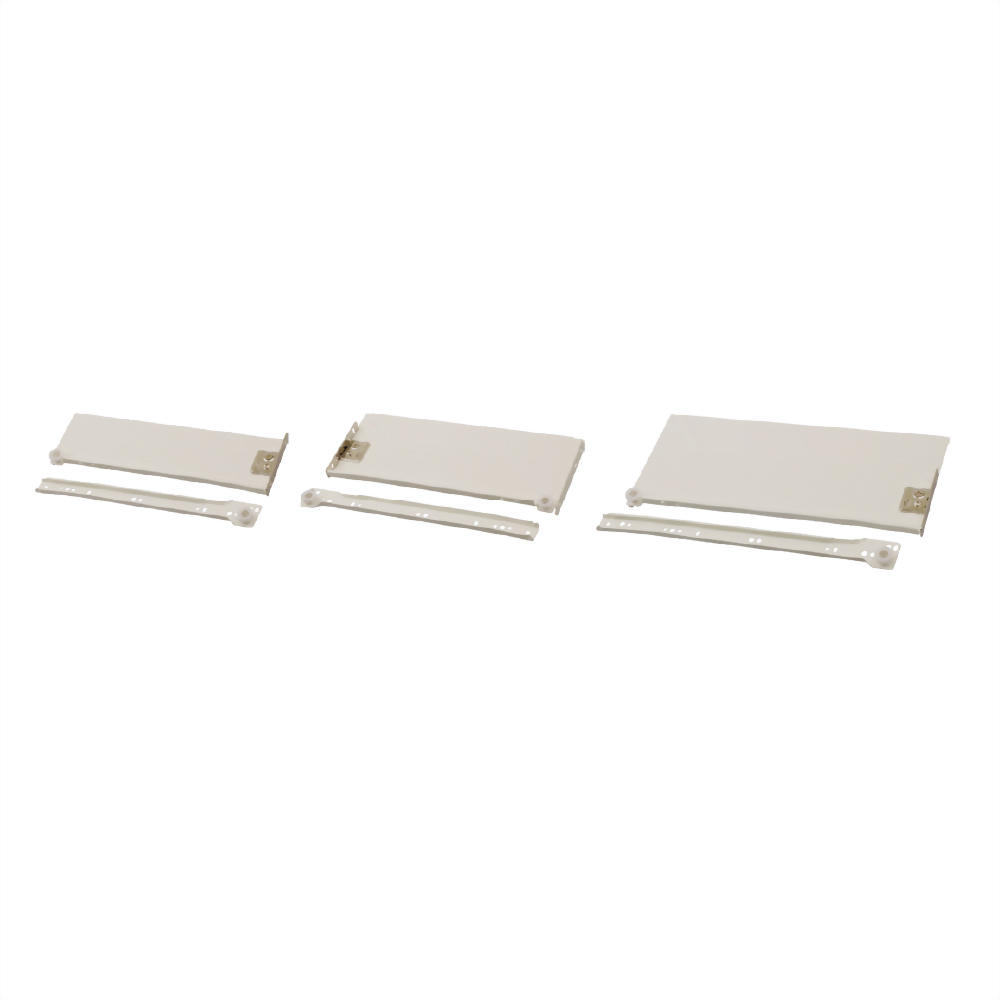

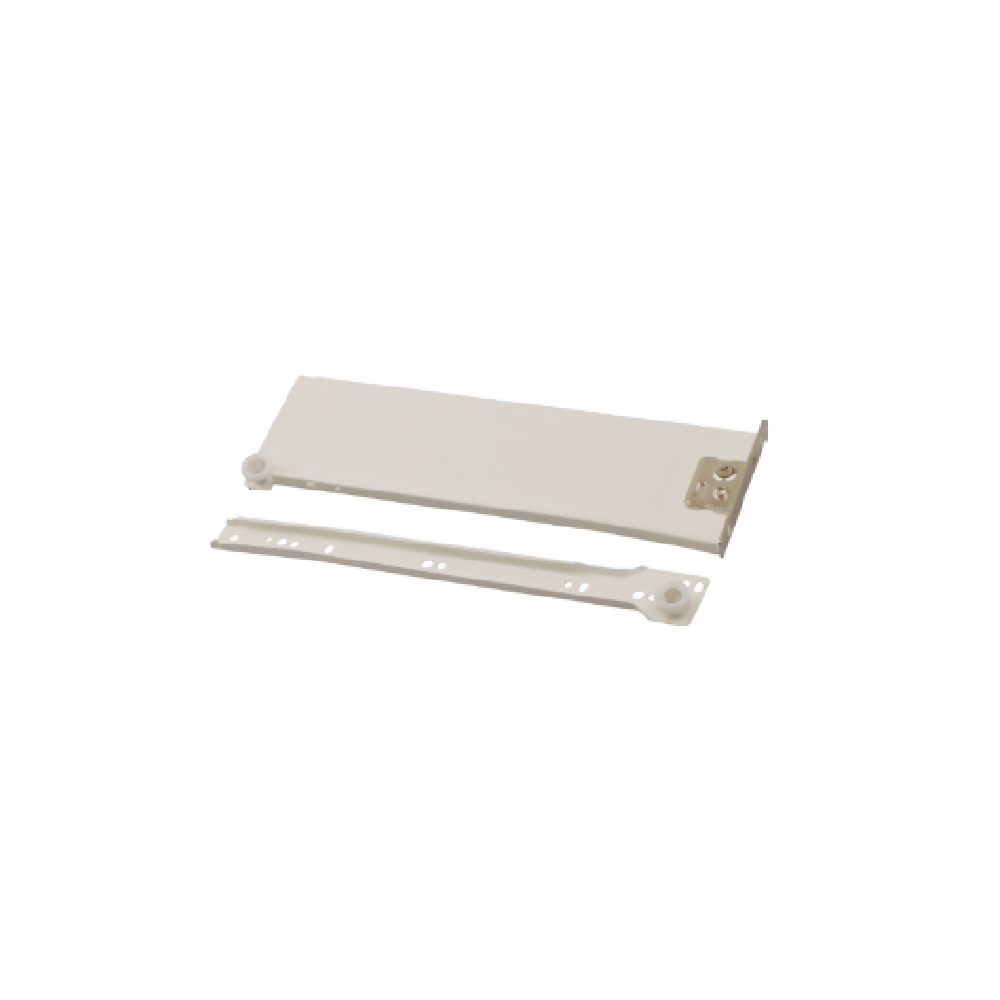

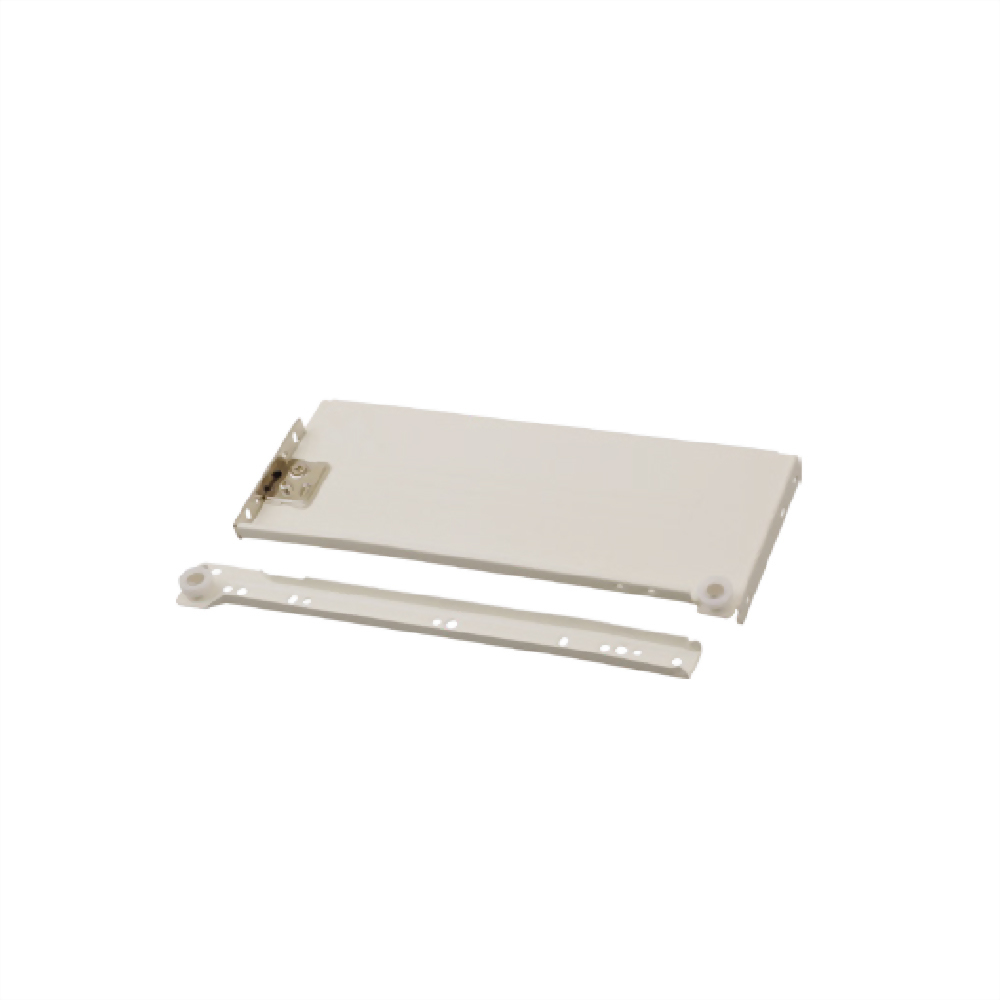

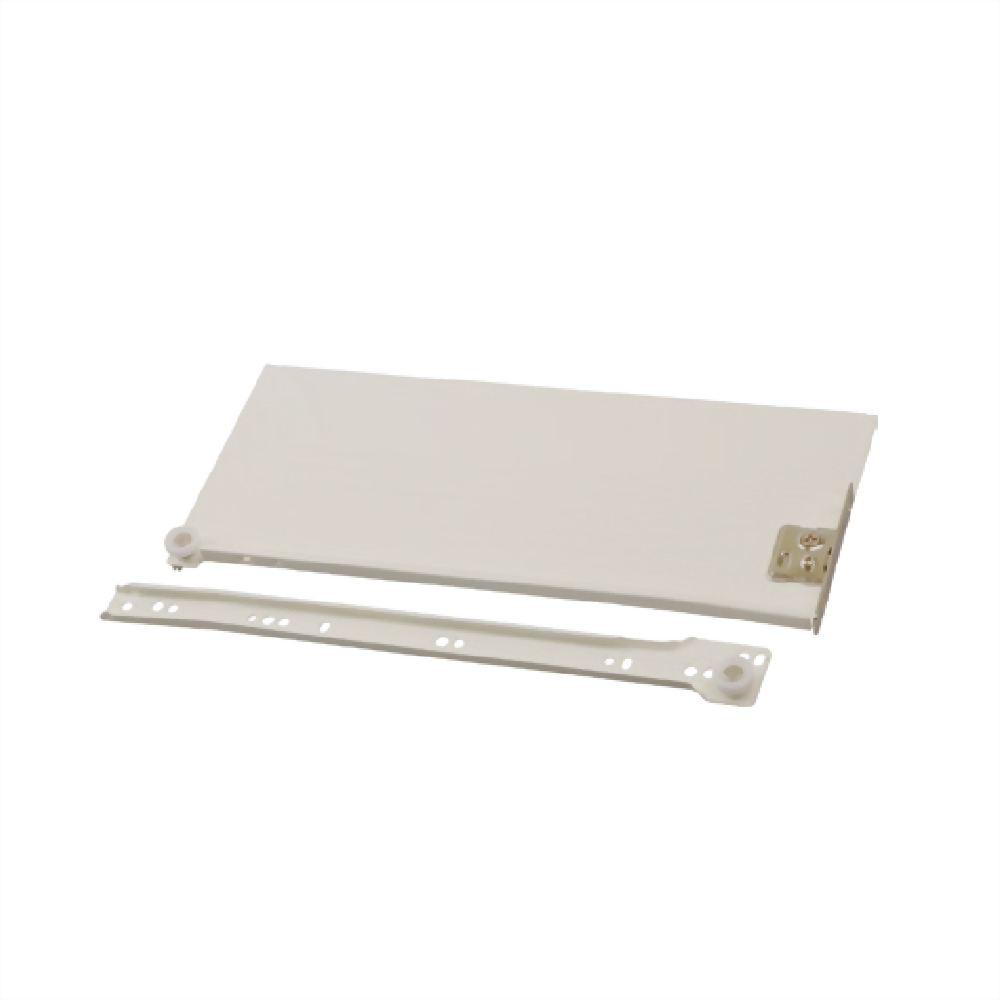

Metal Box
▪Bottom mount
▪Self closing
Model : MB86~150
  • Description

▪Mounting: Bottom mount

▪Material: 1.0mm / 1.2mm Steel

▪Load Capacity: 25kgs

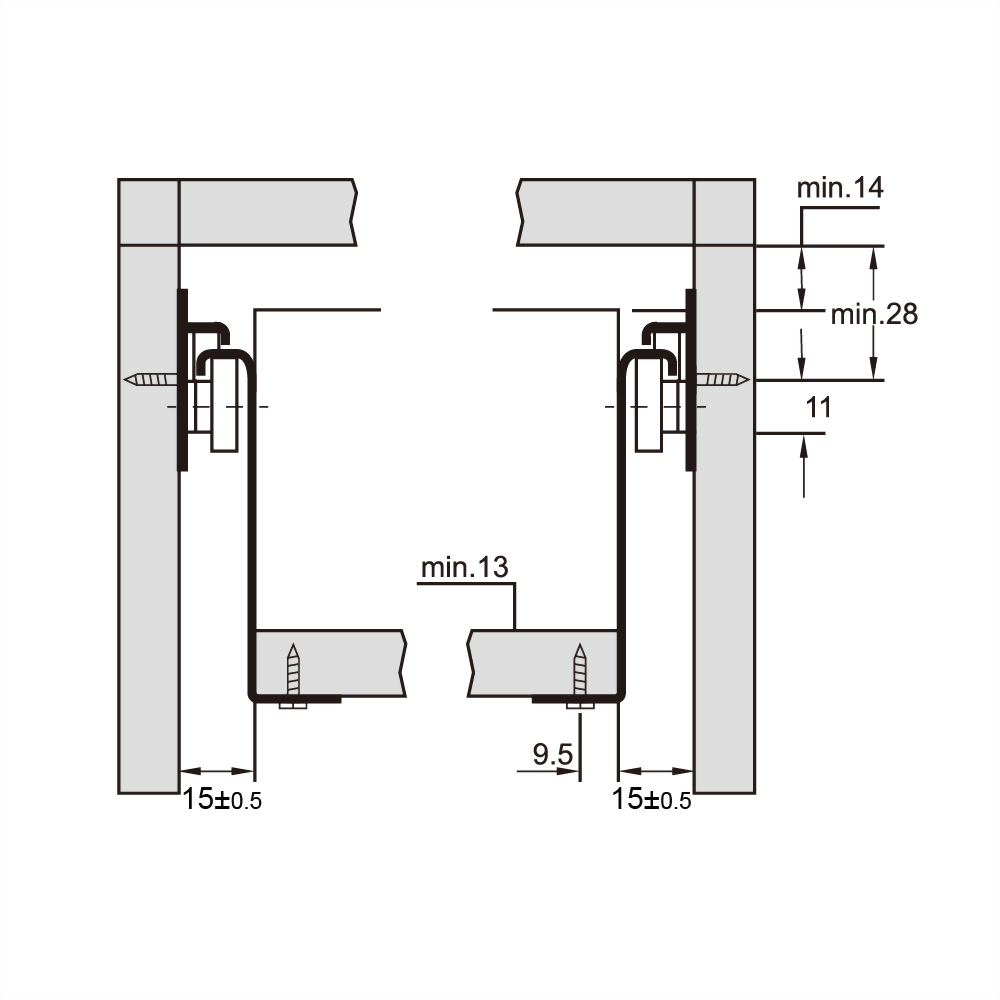

▪Clearance: 15±0.5mm

▪Finish: According to the requirment from client

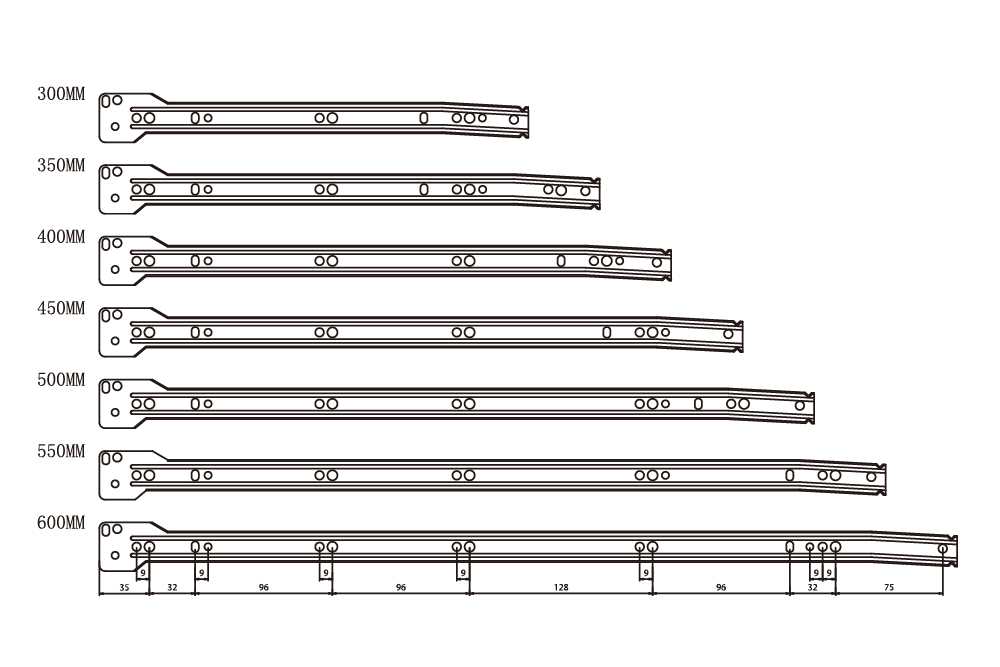

▪Size: 300 - 600mm
