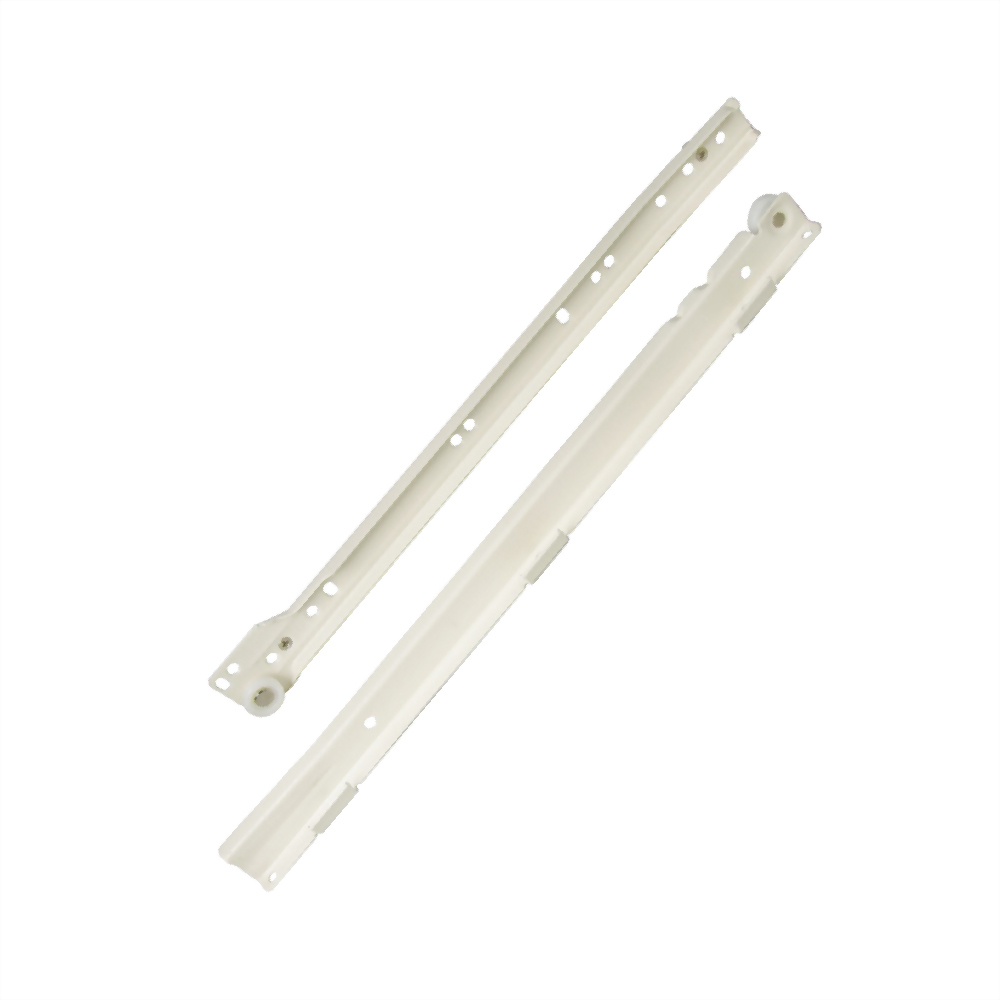

ESH02

Clamp-on Slides
▪Bottom mount
▪Self closing
Model : ESH02
  • Description

▪Mounting: Bottom mount
▪Material: 1.0mm / 1.2mm Steel
▪Load Capacity: 25kgs

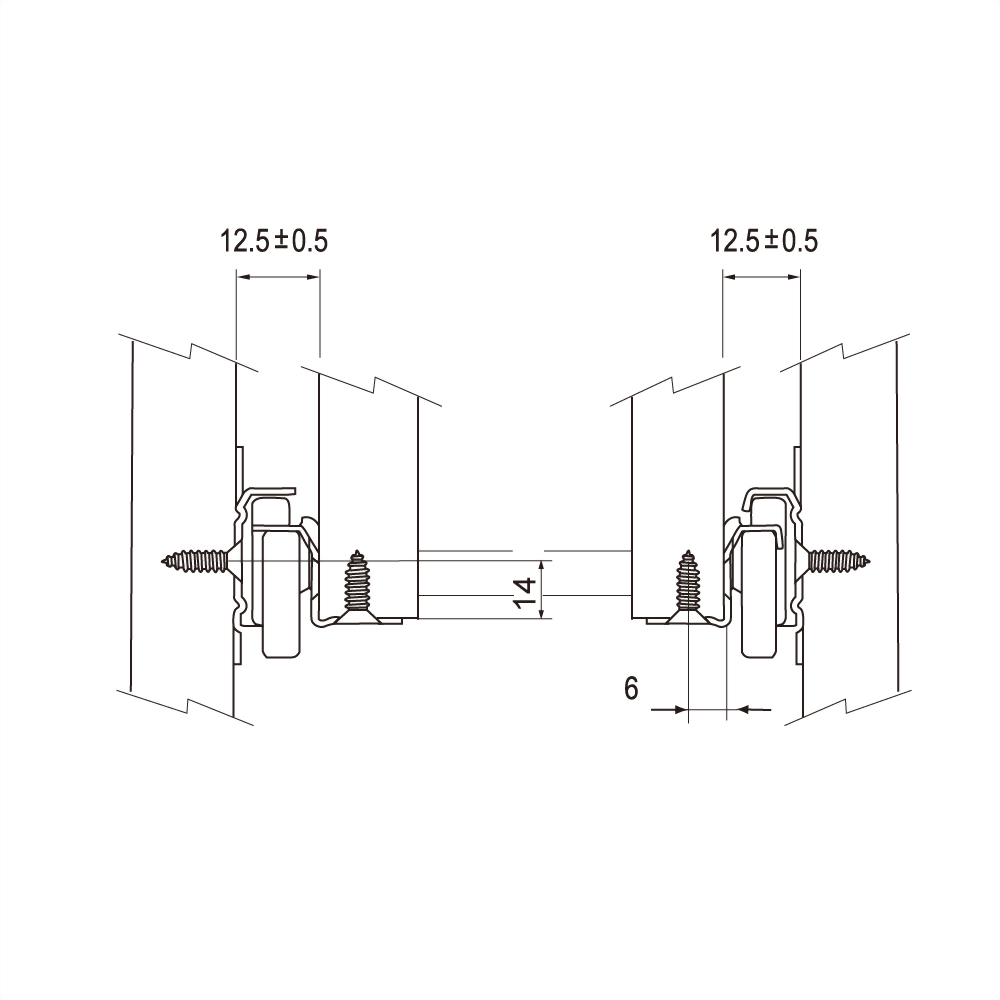

▪Clearance: 12.5±0.5mm
▪Finish: According to the requirment from client
▪Size: 250 - 600mm
