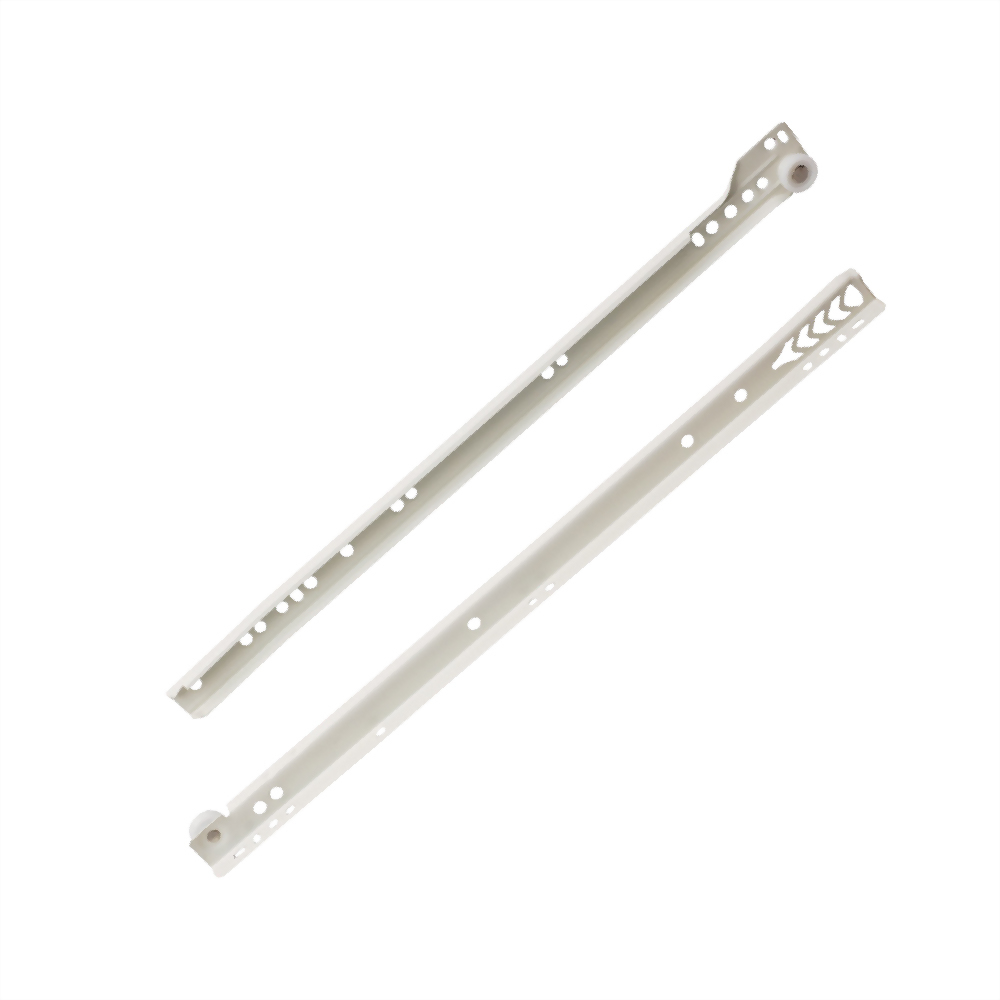

FFS02

Ferrarii Sides
▪Bottom mount
▪Self closing
Model : FFS02
  • Description

▪Mounting: Bottom mount

▪Material: 0.8mm / 1.2mm Steel

▪Load Capacity: 15kgs / 25kgs

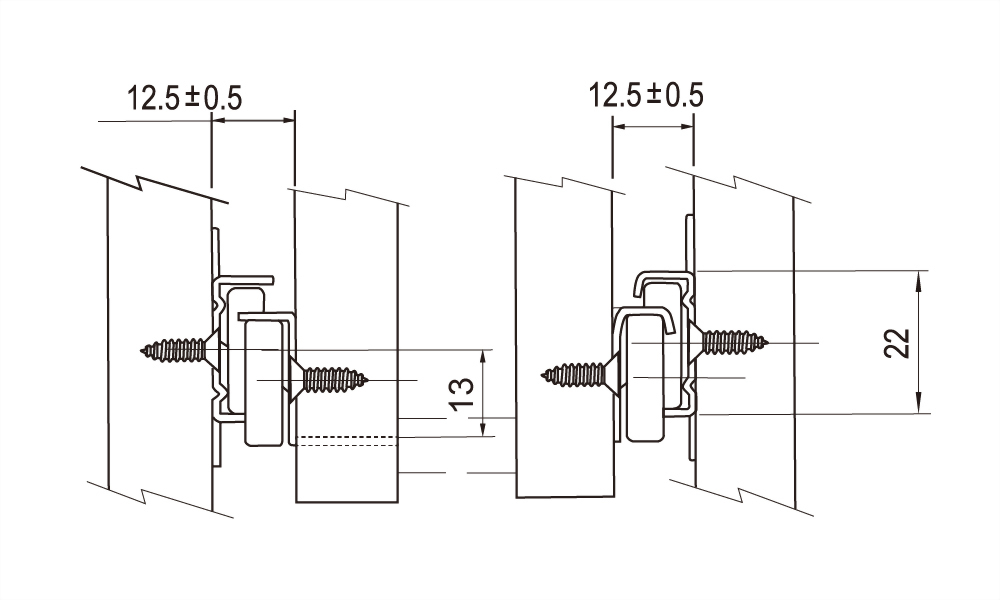

▪Clearance: 12.5±0.5mm

▪Finish: According to the requirment from client

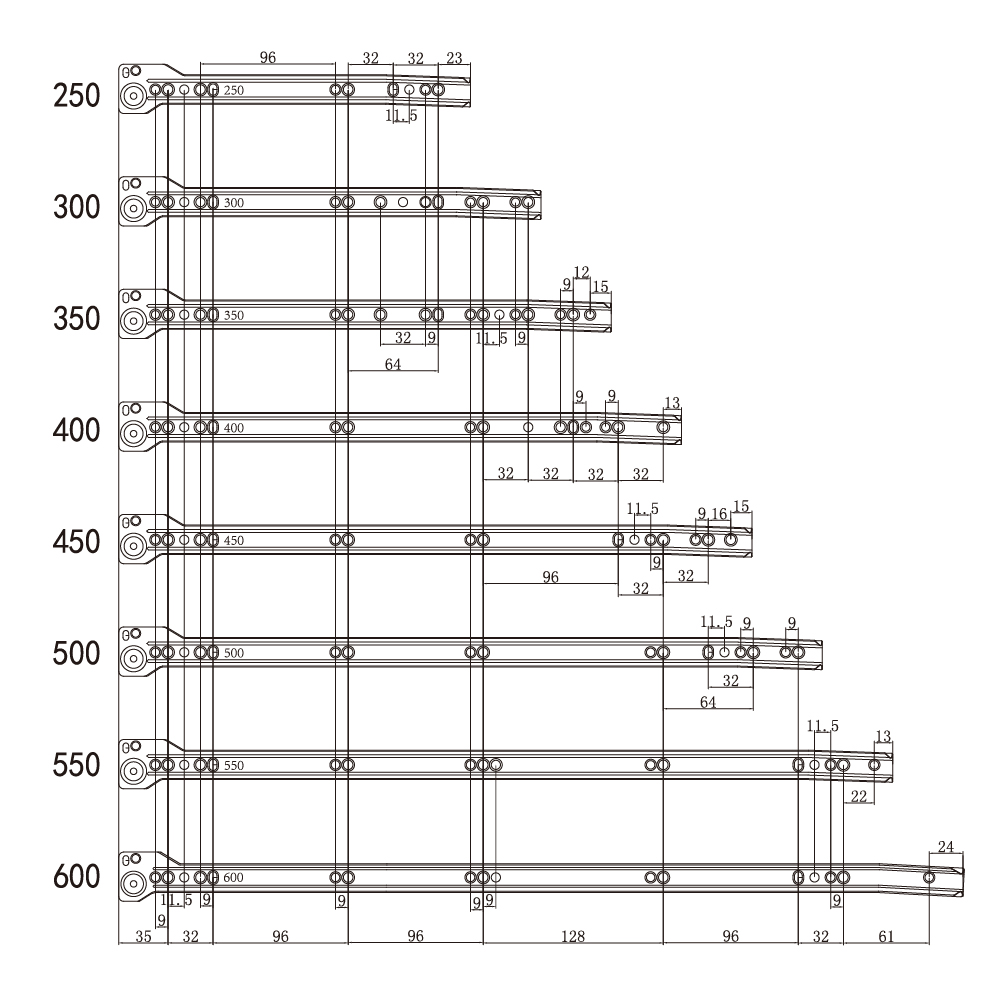

▪Size: 250 - 600mm
