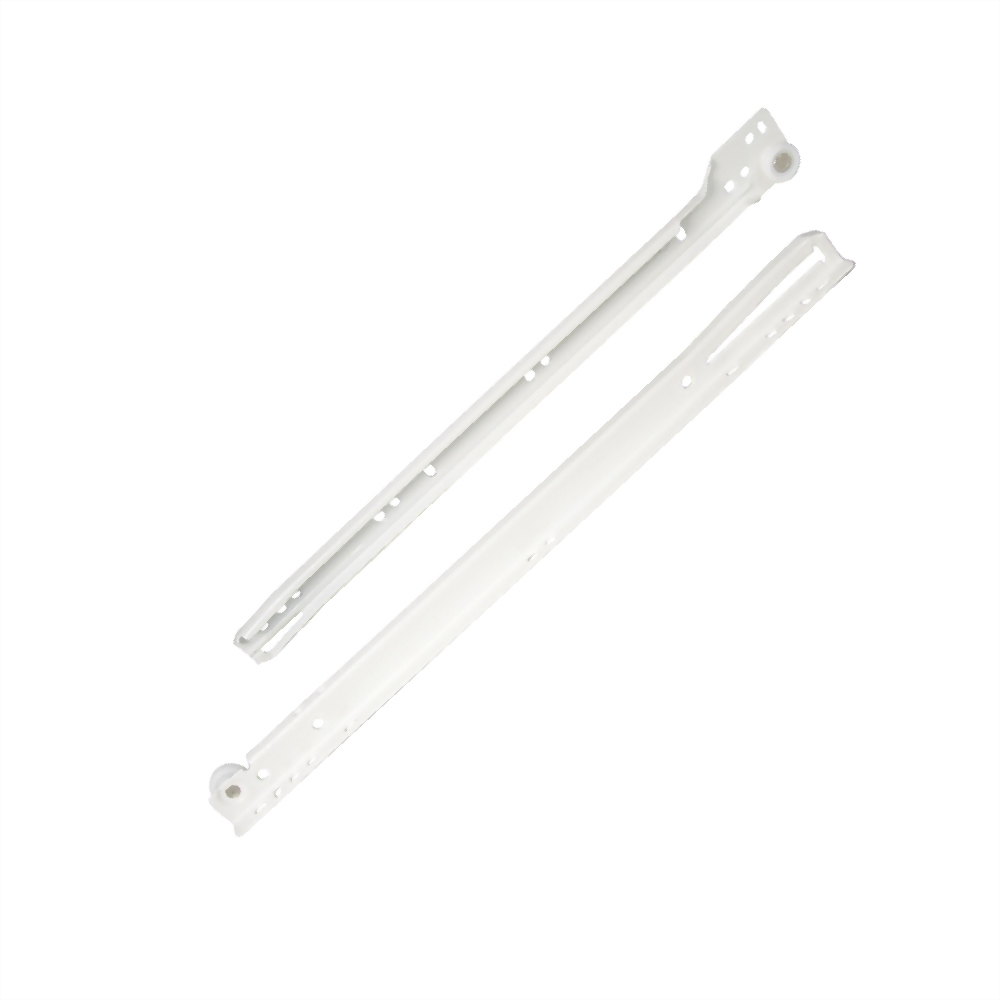

FS02

FGV Sides
▪Bottom mount
▪Self closing
▪Double pathway
Model : FS02
  • Description

▪Mounting: Bottom mount

▪Material: 0.8mm / 1.2mm Steel

▪Load Capacity: 15kgs / 25kgs

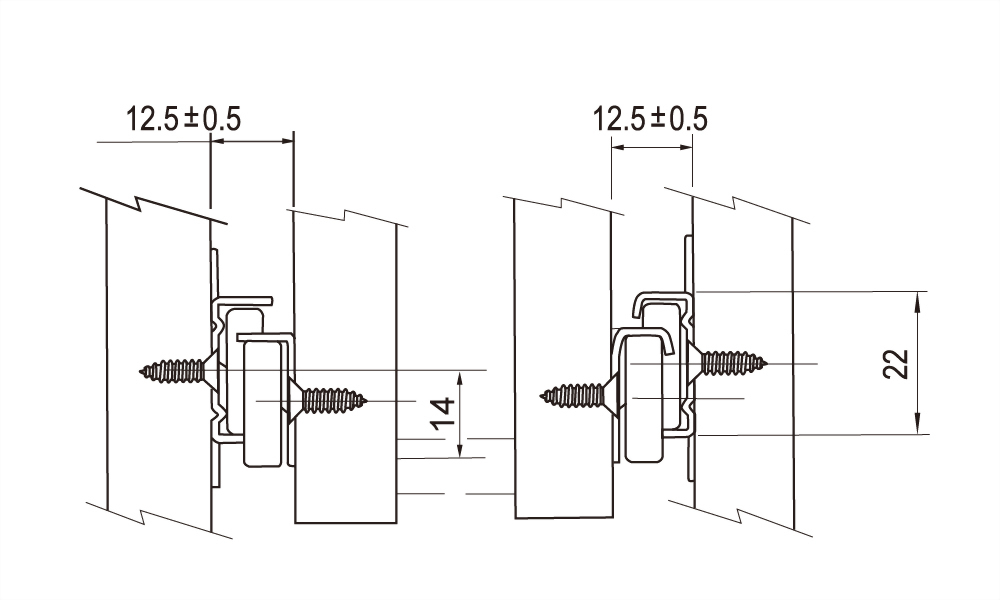

▪Clearance: 12.5±0.5mm

▪Finish: According to the requirment from client

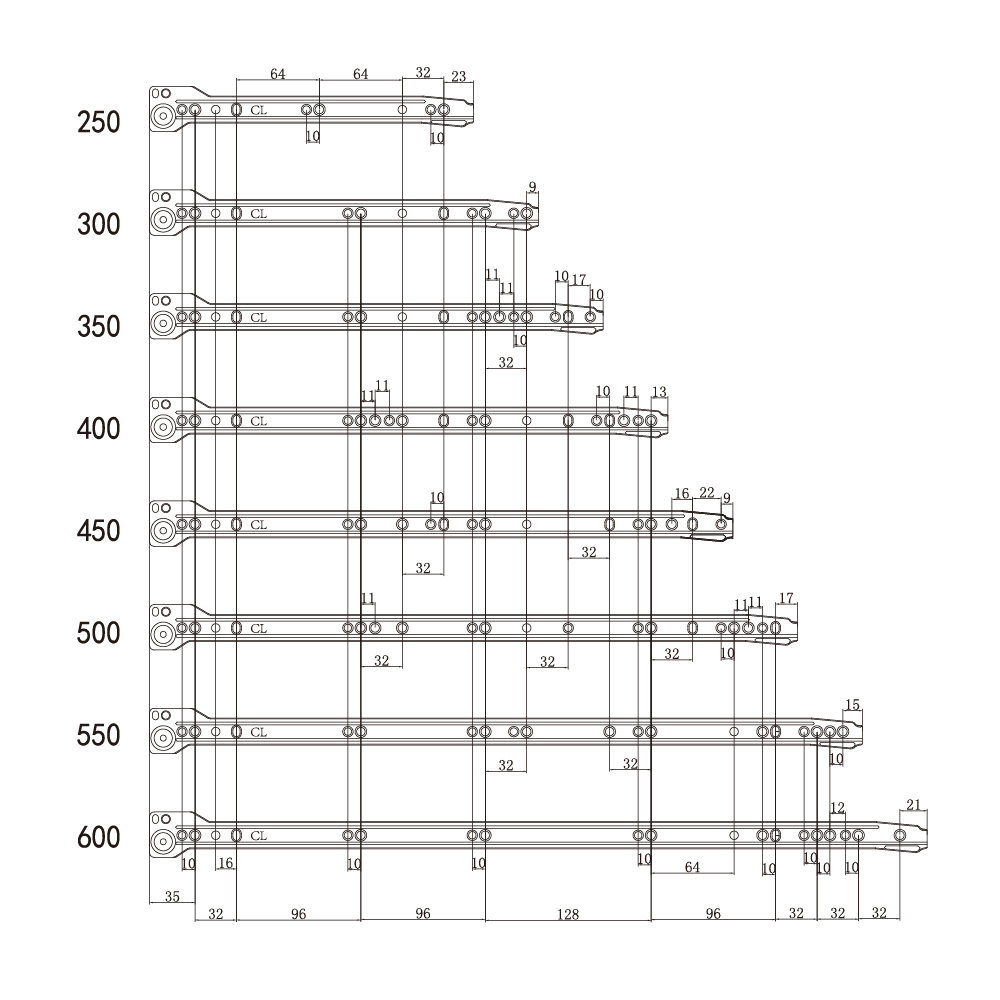

▪Size: 250 - 600mm


Related Products

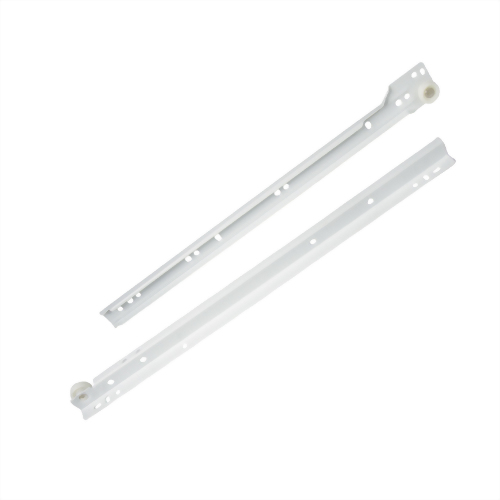

ES01

ES01

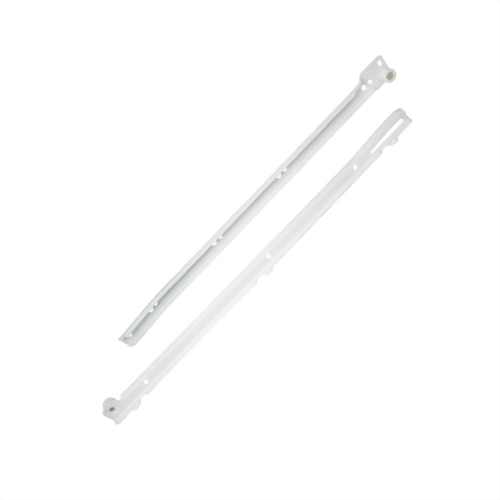

ESS02

ESS02

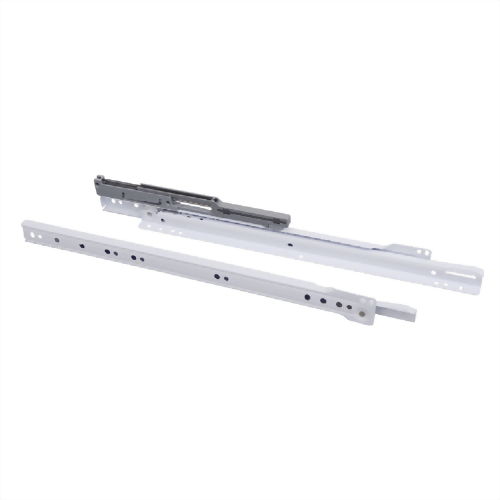

ESD5A

ESD5A

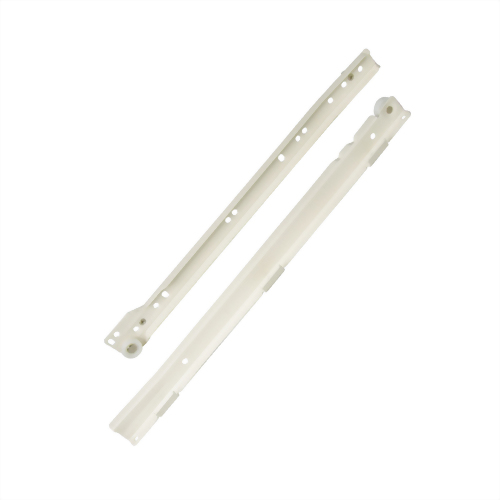

ESH02

ESH02

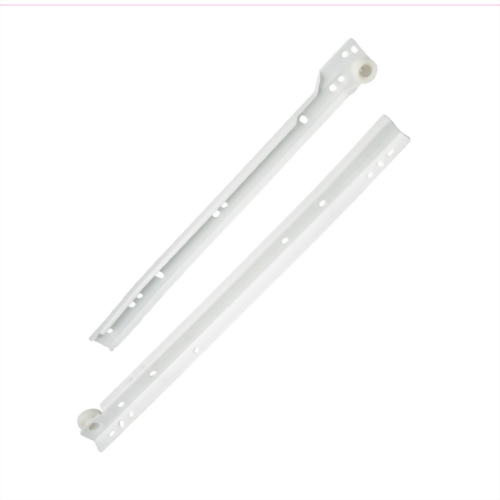

ES02

ES02

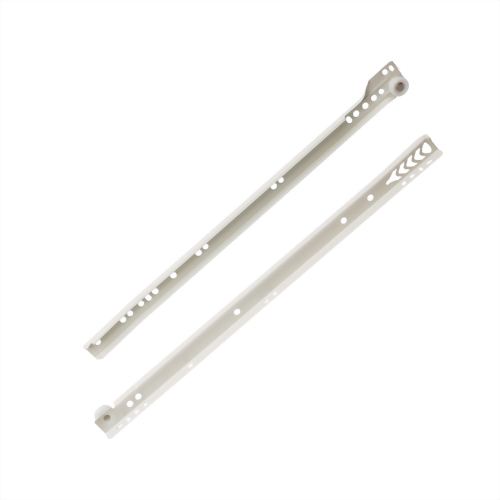

FFS02
