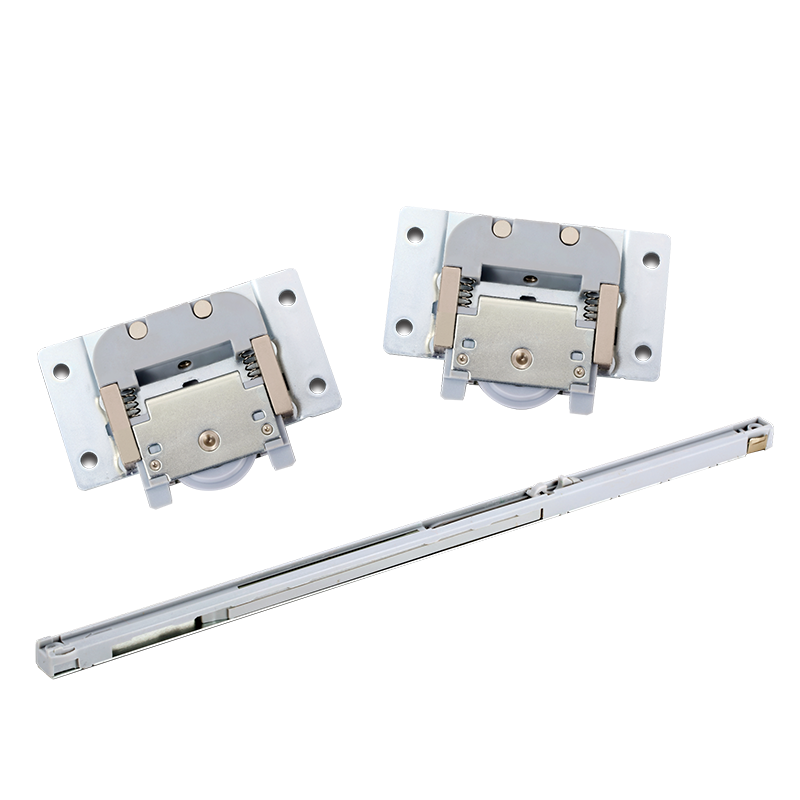

SQ-SD03
Concealed Sliding Door System
▪Concealed damper in minimum 18 mm top panel
▪Imported POM material for wheel, to achieve best silent performance and long lifespan
▪Auto reset function,easy adjustment
▪Damper with Anti jump and Anti-decoupling function
▪Concealed damper in minimum 18 mm top panel
▪Imported POM material for wheel, to achieve best silent performance and long lifespan
▪Auto reset function,easy adjustment
▪Damper with Anti jump and Anti-decoupling function
Model :
SQ-SD03
SQ-SD03 Concealed Sliding Door System
▪Single door weight requirement: 10~50kgs
▪Door thickness: Wooden door≦20 mm / Alum frame door≦34 mm
▪Single door size requirement: Width 500~1200 mm / height≦2500 mm
1) Single door weight requirement : 10 - 50 kg
2) Apply to thickness of wooden door : T ≦ 20 mm
3) Apply to thickness of Alum Frame door : T ≦ 34 mm
4) Single door size requirement : width 500 - 1200 mm
height ≦ 2500 mm
2) Apply to thickness of wooden door : T ≦ 20 mm
3) Apply to thickness of Alum Frame door : T ≦ 34 mm
4) Single door size requirement : width 500 - 1200 mm
height ≦ 2500 mm
