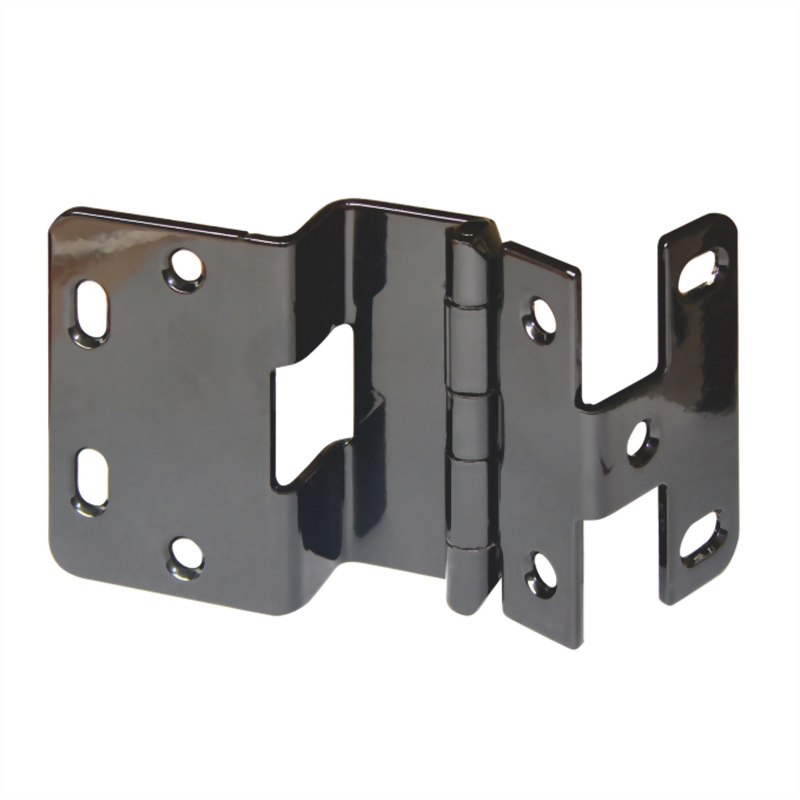

H0274 Institutional Hinges
．32 mm Institutional Hinges are designed to accommodate.
．32 mm hole pattern and stocked for shipment in dull chrome (26D)
．Other finishes are available upon request
．32 mm hole pattern and stocked for shipment in dull chrome (26D)
．Other finishes are available upon request
Model :
H0274

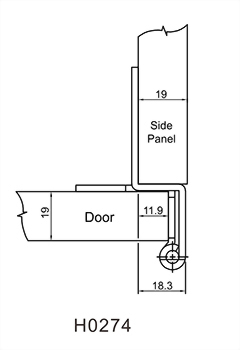

H0274 Institutional Hinges
1) 32 mm Institutional Hinge are designed to accommodate.
2) 5 - Knuckle design
3) Rounded hospital style corners
4) Screw holes countersunk for 9-#8FHx3/4"
5) 2-3/4" High
6) Tooling adaptable for panel and door thickness variations
7) Thickness: 2.5 mm
